51.2V 200Ah
UBEST
UBEST-51.2-200-W

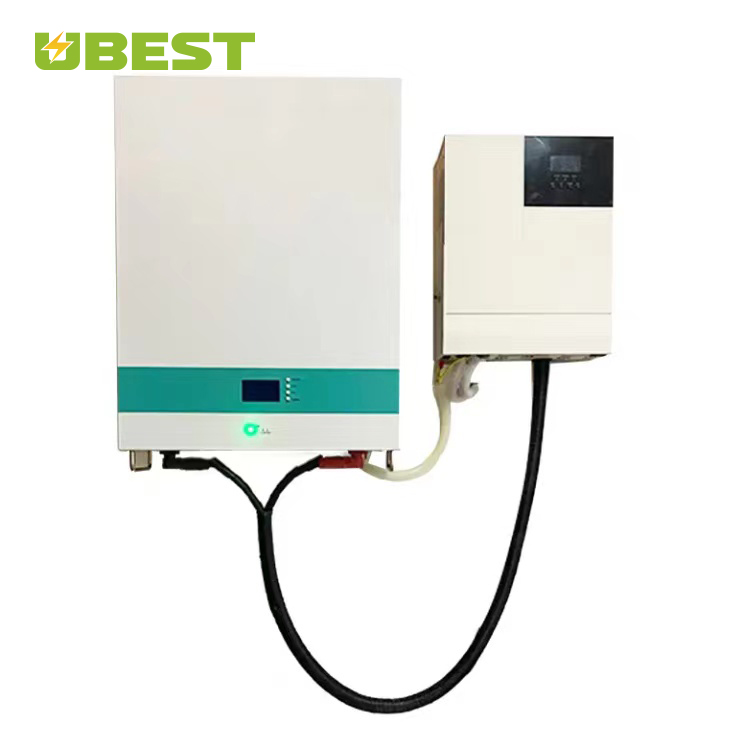

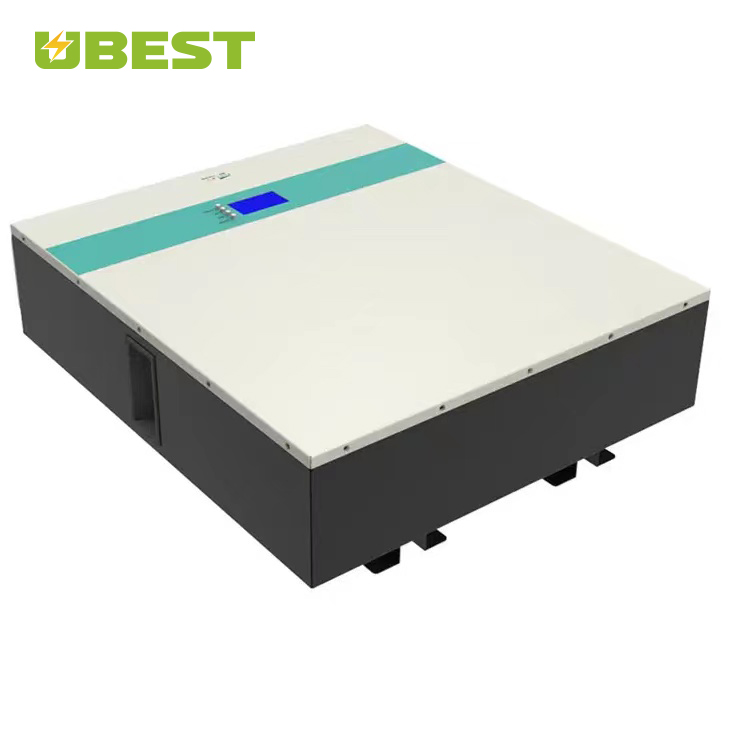

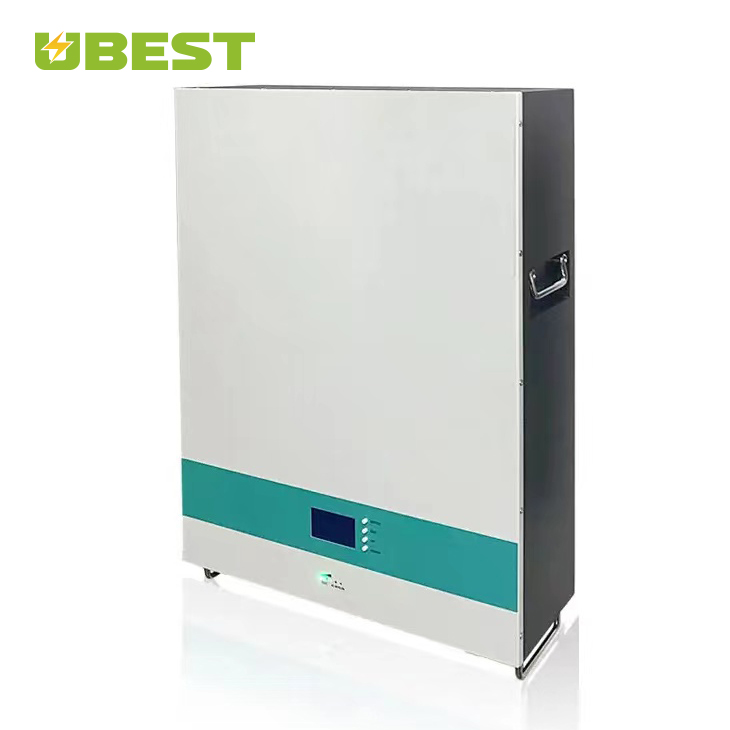

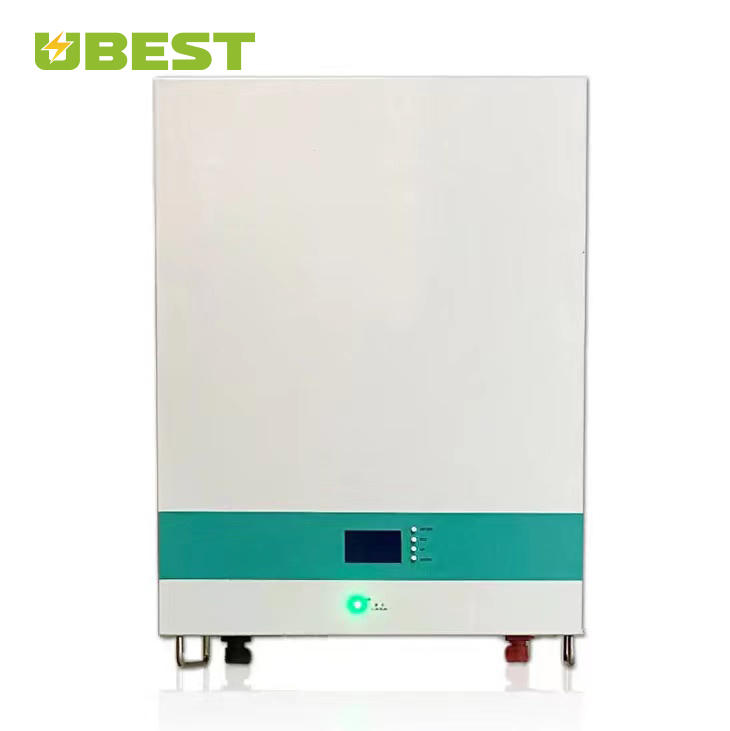

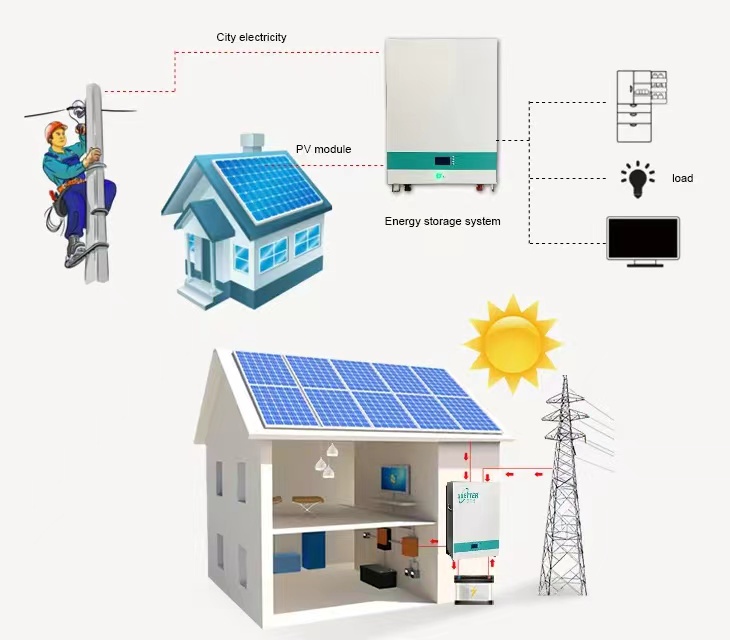

The 51.2V 200AH Wall-mounted Home Energy Storage System (WMHESS) is a battery storage unit that stores electricity generated by renewable energy sources such as solar or wind power. It can store up to 200 amp-hours (AH) of electricity at 51.2 volts (V), which can be used during peak electricity demand or when there is no power supply.
This energy storage system is environmentally friendly, cost-effective, and reduces reliance on fossil fuels. The wall-mounted design of this system is space-saving and easy to install in homes or commercial buildings. The 200AH capacity makes it suitable for larger households or commercial buildings with higher electricity demand.
The increased capacity of 200AH compared to the 100AH model means that it can store more energy, making it suitable for larger households or commercial buildings with higher electricity demand.
item | value |
Battery Type | LiFePO4 |
Power Source | Gas Generator, Other |
Special Features | External Battery |
Controller Type | NONE |
Brand Name | Ubest |
Place of Origin | China |
Guangdong | |
Rated Capacity | 200Ah |
Factory Voltage | 51.2V |
Combination method | 16S1P |
Internal Impedance | ≤50mΩ |
Maximum Continuous Charge Current | 100A |
Maximum Continuous Discharge Current | 100A |
Charge Temperature Range | 0~45℃ |
Discharge Temperature Range | -20~60℃ |
Weight and Dimensions | 85kgs;520*650*185 (223)mm Include Bracket |
BMS Port | CANBUS/RS485 |
15 year Lithium Battery
10 Year Inverter & Electrical Equipments
UL & IEC & UN38.3CERTIFICATION
UL-1973 Certificate
UL-9540A Certificate
IEC-62619 Certificate
20 Years Warranty

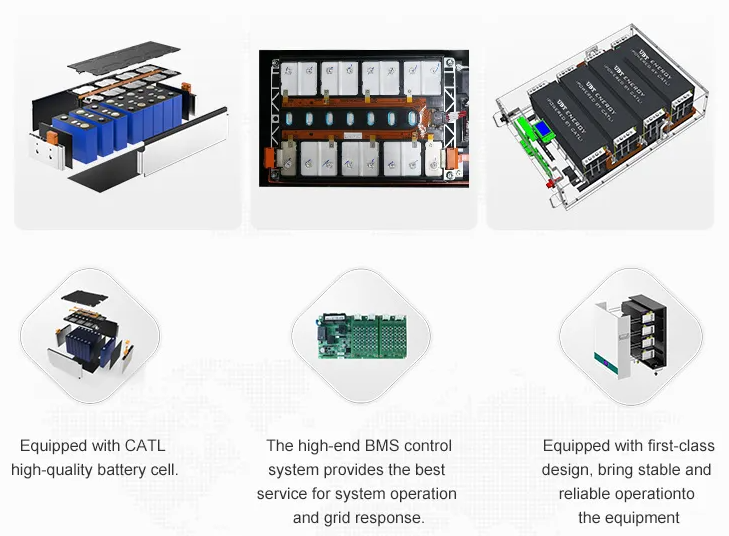

Battery Cell from CATL
Plug and play
Easy installation
Easy to understand settings
100% discharge depth:
Battery cycles more than 8000
Average service life of products more than 25years:
Communication control with protocol Communication rs485/can protocol,Support pc/web/app control,Customizable.

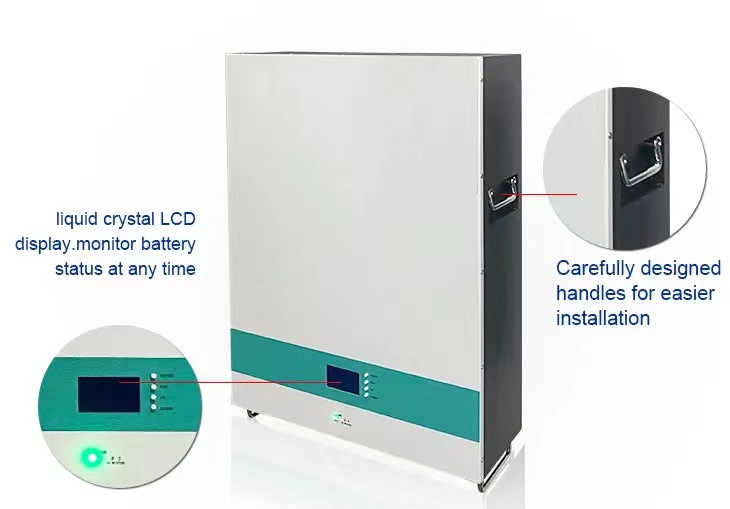

Integrated fuselage design:
Light weight,small size, BMS guaranteed Battery protection,safe and light
The 51.2V 200AH Wall-mounted Home Energy Storage System (WMHESS) is a battery storage unit that stores electricity generated by renewable energy sources such as solar or wind power. It can store up to 200 amp-hours (AH) of electricity at 51.2 volts (V), which can be used during peak electricity demand or when there is no power supply.
This energy storage system is environmentally friendly, cost-effective, and reduces reliance on fossil fuels. The wall-mounted design of this system is space-saving and easy to install in homes or commercial buildings. The 200AH capacity makes it suitable for larger households or commercial buildings with higher electricity demand.
The increased capacity of 200AH compared to the 100AH model means that it can store more energy, making it suitable for larger households or commercial buildings with higher electricity demand.
