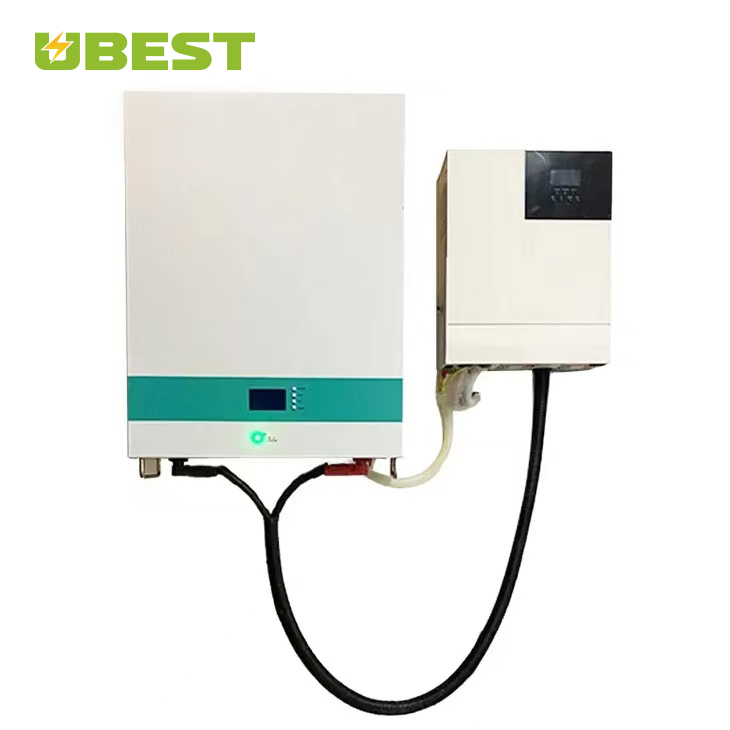

51.2V 100AH Wall-mounted Home Energy Storage System

Charge Current: 100A
Capacity: 100Ah, 5KWh
Battery Type: Lithium Ion
Weight: 52kg

The 51.2V 100Ah Wall-mounted Home Energy Storage System (WMHESS) is a cutting-edge technology that offers smart and efficient energy storage for residential properties. This wall-mounted system is designed to deliver a reliable and stable power supply for homes by storing excess energy generated by solar panels or other renewable sources.
The system has a capacity of 51.2 volts and 100 Ah, which can provide sufficient energy for daily household needs. It features a user-friendly interface that allows homeowners to monitor and manage their power consumption, making it a smart and cost-effective solution for reducing energy bills.
The 51.2V 100Ah Wall-mounted HomeEnergy Storage System (WMHESS) is also equipped with advanced safety features, including built-in protection against overcharging, over-discharging, short-circuiting, and overheating. This makes it a safe and secure option for homeowners who want to ensure the protection of their home and family.

SKU:
Availability:



Inquire Add to Basket PDF Export

Model:
51.2V 100Ah
Brand:
UBEST
Code:
UBEST-51.2-100-W

Product Description

Product Introduction

The 51.2V 100Ah Wall-mounted Home Energy Storage System (WMHESS) is a battery storage solution designed to store electricity produced from renewable energy sources like solar or wind power. It is a wall-mounted unit that contains batteries capable of storing up to 100 amp-hours (AH) of electricity at a voltage of 51.2 volts (V). This energy can be used to power homes or businesses during periods of high electricity demand or when there is no power supply available.

These energy storage systems are becoming more popular as people seek ways to reduce their reliance on fossil fuels and transition to sustainable energy sources. They are environmentally friendly and can help lower electricity bills while reducing carbon emissions. The wall-mounted design of this system is space-saving and can be easily installed in homes or commercial buildings.

Essential details

Warranty:3years

Free installation service:NO

Place of Origin:Guangdong, China

Brand Name:Ubest

Application:Home

Solar Panel Type:Monocrystalline Silicon, Polycrystalline Silicon

Battery Type:Lithium Ion

Controller Type:PWM

Mounting Type:Roof Mounting

Load Power (W):10KW

Output Voltage (V):2.0-3.6v

Output Frequency:100A

Work Time (h):24

Certificate:CE ROHS

Pre-sales project design:Y

Rated Capacity:100Ah

Factory Voltage:51.2V

Combination method:16S1P

Internal Impedance:≤50mΩ

Maximum Continuous Charge Current:100A

Maximum Continuous Discharge Current:100A

Charge Temperature Range:0~45℃

Discharge Temperature Range:-20~60℃

Weight and Dimensions:85kgs;520*650*185 (223)mm Include Bracket

BMS Port:CANBUS/RS485

Specification

Item	value
Place of Origin	China
Brand Name	Ubest
Battery Type	Lithium Ion, LiFePO4
Rated Capacity	200Ah
Factory Voltage	51.2V
Combination method	16S1P
Internal Impedance	≤50mΩ
Maximum Continuous Charge Current	100A
Maximum Continuous Discharge Current	100A
Charge Temperature Range	0~45℃
Discharge Temperature Range	-20~60℃
Weight and Dimensions	85kgs;520650185 (223)mm Include Bracket
BMS Port	CANBUS/RS485
