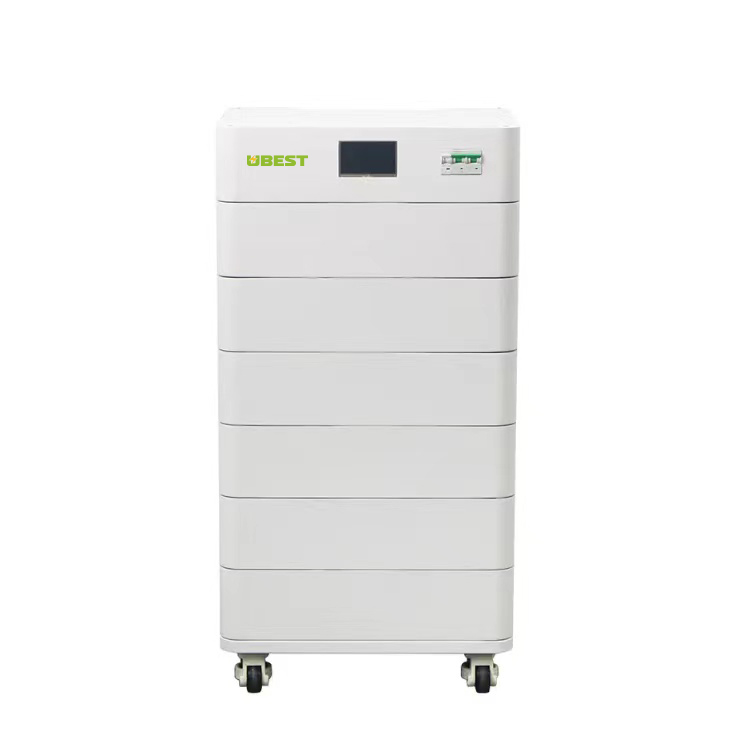

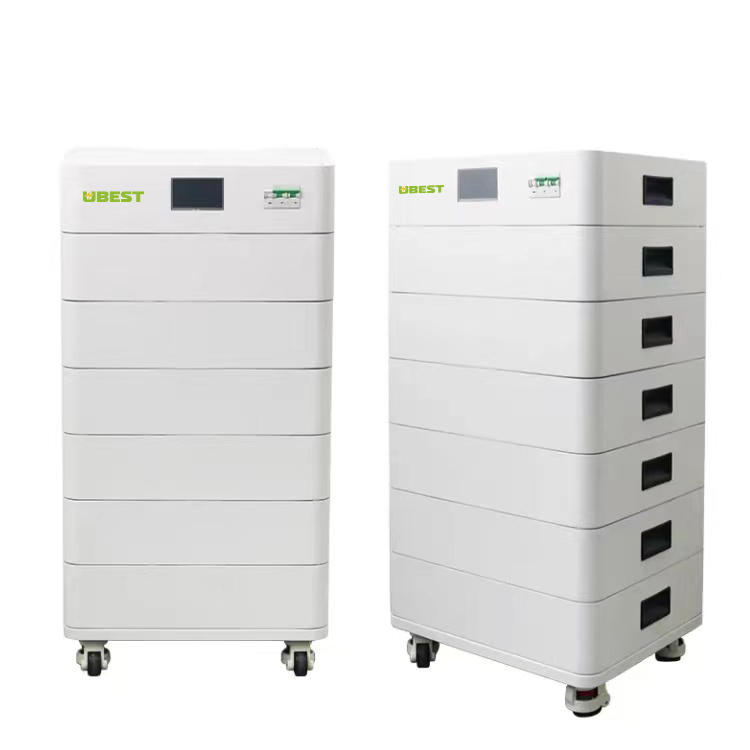

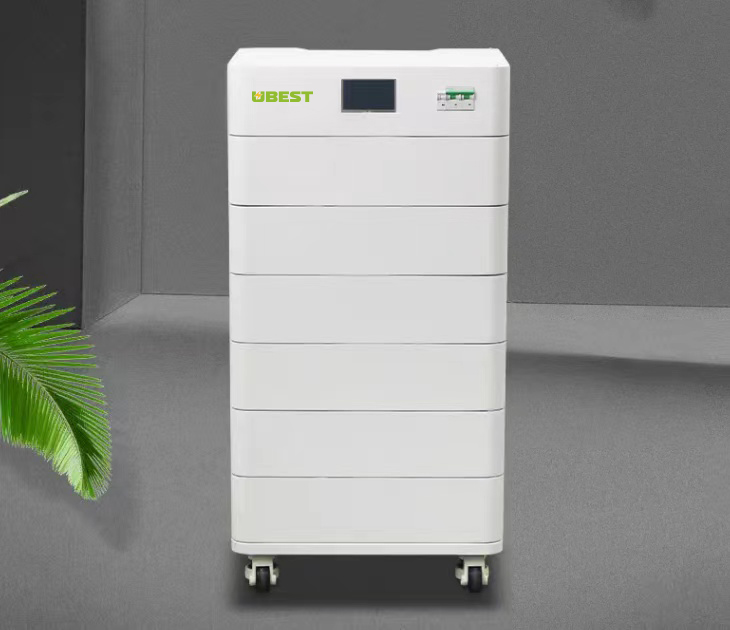

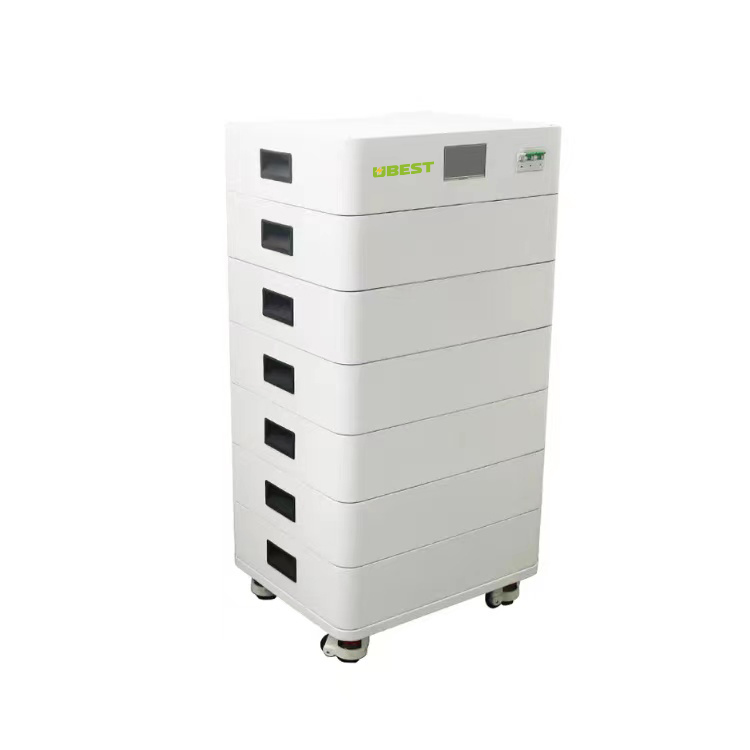

51.2V 100AH Rack-mounted Home Energy Storage System

Charge Current: 100A
Capacity: 100Ah, 5KWh
Battery Type: Lithium Ion
Weight: 52kg
The 51.2V 100AH Rack-mounted Home Energy Storage System (RMHESS) is a type of battery storage system designed to store electrical energy generated from renewable sources such as solar panels or wind turbines, for use in residential or commercial settings.
The system consists of a rack-mounted unit that contains a set of batteries capable of storing up to 100 amp-hours (AH) of electrical energy at a voltage of 51.2 volts (V). The battery unit can be charged either from the electrical grid or from renewable sources and can then be used to power homes or businesses during periods of high demand or when there is no electricity supply available.
SKU:
Availability:

PDF Export

  • 51.2V 100Ah

  • UBEST

  • UBEST-51.2-100-R

Electrical

Characteristics

Nominal Voltage

48V

Nominal Capacity

100Ah


Energy

4800Wh


Internal Resistance(AC)

≤20mΩ


Cycle Life

>5500 cycles @ 1C 80% DOD


Months Self Discharge

<3%


Efficiency of Charge

100% @0.5C


Efficiency of Discharge

96~99% @1C


Standard Charge

Charge Voltage

58.4±0.2V

Charge Mode

0.2C to 58.4V, then 58.4V, charge current to 0.02C(CC/CV)


Charge Current

100A


Max. Charge Current

100A


Charge Cut-off Voltage

59.4±0.2V


Standard Discharge

Continuous Current

100A

Max.Pulse Current

150A(<3s)


Discharge Cut-off Voltage

40V


Environmental

Charge Temperature

0℃ to 55℃ (32F to 131F) @60±25% Relative Humidity

Discharge Temperature

-20℃ to 60℃ (-4F to 140F) @60±25% Relative Humidity


Storage Temperature

-20℃ to 45℃ (-4F to 113F) @60±25% Relative Humidity


IP Class

IP65


Mechanical

Plastic Case

ABS/Metal

Approx.Dimensions

520*460*195mm/Customized


Approx.Weight

52kg



HOUSEHOLD ENERGY STORAGE

HOUSEHOLD ENERGY STORAGE BATTERY SYSTEM

High performance intelligent BMS protection of lithium iron phosphate battery

High pressure, Stacking,Modular

HOUSEHOLD ENERGY STORAGEBATTERY SYSTEM

HOME ENERGY STORAGE SYSTEM RECOMMENDATION

High energy ratio reverse control integrated installation free,small volume and movable


HOUSEHOLD ENERGYSTORAGE BATTERY

High pressure stacked type

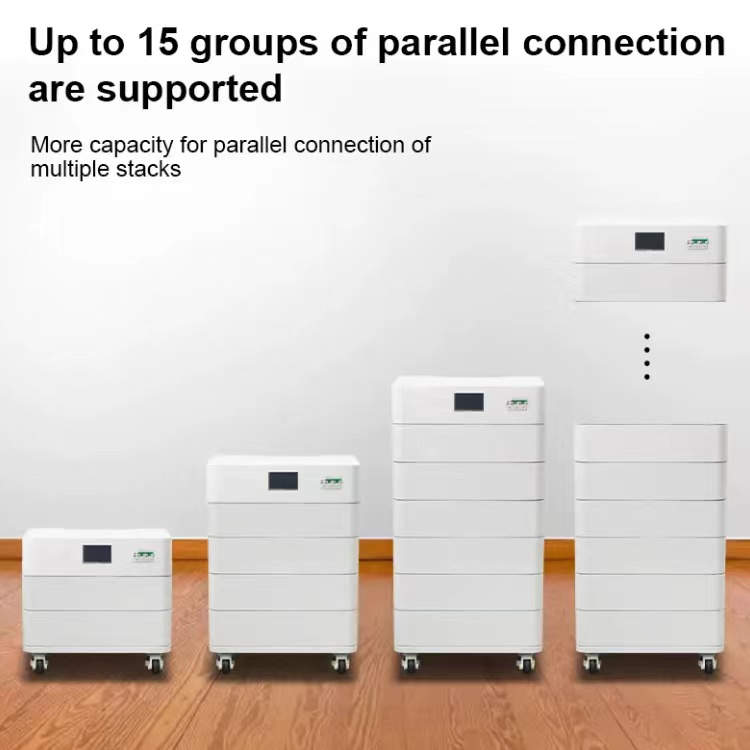

Supporting parallel connection

Complete certification

LCD screen monitoring

CAN communication

Support global mainstream inverter


High performance intelligent BMS protection

Configuration of stacked inverter

CAN/RS485/RS232WiFi/Bluetooth/4Gcommunication

protection

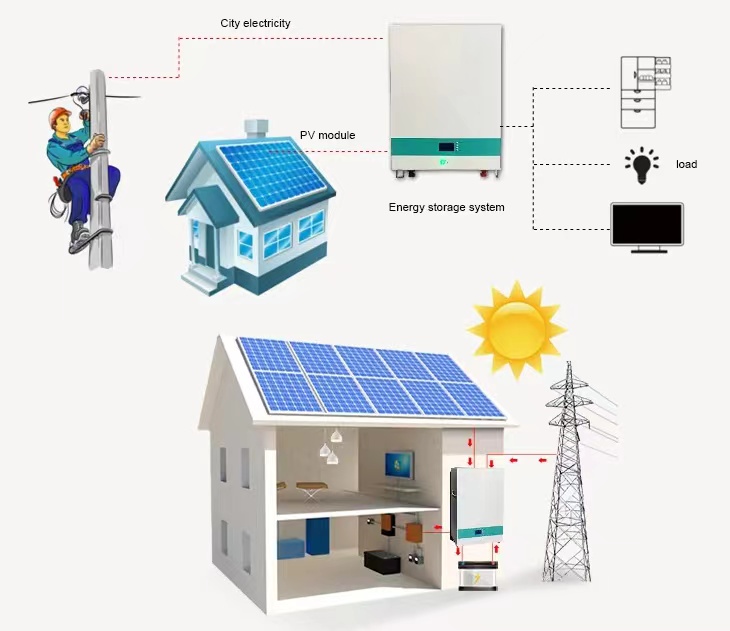

Product System Application

application


Product introduction

Power storage wall is a battery that stores energy, detects outages and automatically becomes your home's energy source when the grid goes down. Unlike gasoline generators, Power storage wall keeps your lights on and phones charged without upkeep, fuel or noise. Pair with solar and recharge with sunlight to keep your appliances running for days.


Product Advantages

Plug and play

Easy installation

Easy to understand settings

100% discharge depth:

Battery cycles 2 8000, average service life of products more than 25 years

Communication control with protocol:Communication rs485/can protocol, Support pc/web/app control, Customizable.

Integrated fuselage design:Light weight,small size, BMS, guaranteed Battery protection, safe and light.
