48V 200Ah
UBEST
UBEST-48-200-W

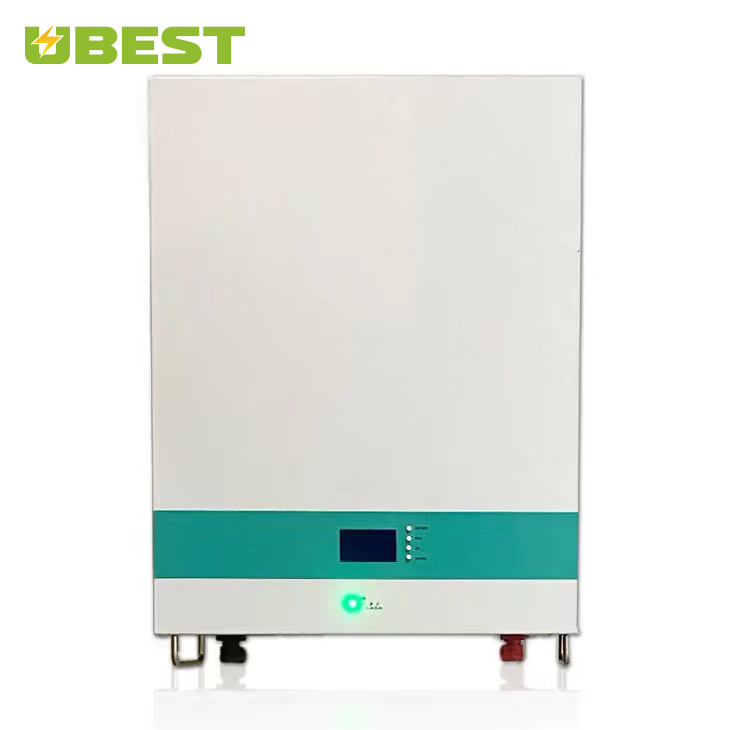

The 48V 200AH Wall-mounted Home Energy Storage System (WMHESS) is a type of battery storage system designed to store electrical energy generated from renewable sources such as solar panels or wind turbines, for use in residential or commercial settings.
The system consists of a wall-mounted unit that contains a set of batteries capable of storing up to 200 amp-hours (AH) of electrical energy at a voltage of 48 volts (V). The battery unit can be charged either from the electrical grid or from renewable sources and can then be used to power homes or businesses during periods of high demand or when there is no electricity supply available.
This type of energy storage system is becoming increasingly popular as more and more people look for ways to reduce their reliance on fossil fuels and move towards more sustainable sources of energy. It can help homeowners and businesses save money on their electricity bills and reduce their carbon footprint by allowing them to use clean, renewable energy when it's most needed. The wall-mounted design of this system makes it space-saving and convenient for installation in residential or commercial settings.
Place of Origin:Guangdong, China
Brand Name:Ubest
Battery Type:Lithium Ion, LiFePO4
Type:Wall-mounted Storage battery
Charging / Discharge current:100A
Size:600(L)*530(W)*187(H)
Certificate:CE, ROHS, BIS, MSDS, UN38.3
Discharge cutoff voltage:43.2v
Charging cutoff voltage:58.4V
Weight:85±5Kg
Cycle life(80%DOD):3000 cycles
Capacity:100ah
Nominal voltage:51.2V
Power storage wall is a battery that stores energy, detects outages and automatically becomes your home's energy source when the grid goes down. Unlike gasoline generators, Power storage wall keeps your lights on and phones charged without upkeep, fuel or noise. Pair with solar and recharge with sunlight to keep your appliances running for days.
Plug and play
Easy installation
Easy to understand settings
100% discharge depth:Battery cycles more than 8000
Average service life of products more than 25 years
Communication control with protocol:Communication rs485/can protocol,Support pc/web/app control,Customizable.
Integrated fuselage design:Light weight, small size, BMS, guaranteed Battery protection, safe and light
Electrical Characteristics | Nominal Voltage | 48V |
Nominal Capacity | 100Ah | |
Energy | 4800Wh | |
Internal Resistance(AC) | ≤20mΩ | |
Cycle Life | >5500 cycles @ 1C 80% DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 58.4±0.2V |
Charge Mode | 0.2C to 58.4V, then 58.4V, charge current to 0.02C(CC/CV) | |
Charge Current | 100A | |
Max. Charge Current | 100A | |
Charge Cut-off Voltage | 59.4±0.2V | |
Standard Discharge | Continuous Current | 100A |
Max.Pulse Current | 150A(<3s) | |
Discharge Cut-off Voltage | 40V | |
Environmental | Charge Temperature | 0℃ to 55℃ (32F to 131F) @60±25% Relative Humidity |
Discharge Temperature | -20℃ to 60℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | -20℃ to 45℃ (-4F to 113F) @60±25% Relative Humidity | |
IP Class | IP65 | |
Mechanical | Plastic Case | ABS/Metal |
Approx.Dimensions | 520*460*195mm/Customized | |
Approx.Weight | 52kg |
The 48V 200AH Wall-mounted Home Energy Storage System (WMHESS) is a type of battery storage system designed to store electrical energy generated from renewable sources such as solar panels or wind turbines, for use in residential or commercial settings.
The system consists of a wall-mounted unit that contains a set of batteries capable of storing up to 200 amp-hours (AH) of electrical energy at a voltage of 48 volts (V). The battery unit can be charged either from the electrical grid or from renewable sources and can then be used to power homes or businesses during periods of high demand or when there is no electricity supply available.
This type of energy storage system is becoming increasingly popular as more and more people look for ways to reduce their reliance on fossil fuels and move towards more sustainable sources of energy. It can help homeowners and businesses save money on their electricity bills and reduce their carbon footprint by allowing them to use clean, renewable energy when it's most needed. The wall-mounted design of this system makes it space-saving and convenient for installation in residential or commercial settings.
Place of Origin:Guangdong, China
Brand Name:Ubest
Battery Type:Lithium Ion, LiFePO4
Type:Wall-mounted Storage battery
Charging / Discharge current:100A
Size:600(L)*530(W)*187(H)
Certificate:CE, ROHS, BIS, MSDS, UN38.3
Discharge cutoff voltage:43.2v
Charging cutoff voltage:58.4V
Weight:85±5Kg
Cycle life(80%DOD):3000 cycles
Capacity:100ah
Nominal voltage:51.2V
Power storage wall is a battery that stores energy, detects outages and automatically becomes your home's energy source when the grid goes down. Unlike gasoline generators, Power storage wall keeps your lights on and phones charged without upkeep, fuel or noise. Pair with solar and recharge with sunlight to keep your appliances running for days.
Plug and play
Easy installation
Easy to understand settings
100% discharge depth:Battery cycles more than 8000
Average service life of products more than 25 years
Communication control with protocol:Communication rs485/can protocol,Support pc/web/app control,Customizable.
Integrated fuselage design:Light weight, small size, BMS, guaranteed Battery protection, safe and light
Electrical Characteristics | Nominal Voltage | 48V |
Nominal Capacity | 100Ah | |
Energy | 4800Wh | |
Internal Resistance(AC) | ≤20mΩ | |
Cycle Life | >5500 cycles @ 1C 80% DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 58.4±0.2V |
Charge Mode | 0.2C to 58.4V, then 58.4V, charge current to 0.02C(CC/CV) | |
Charge Current | 100A | |
Max. Charge Current | 100A | |
Charge Cut-off Voltage | 59.4±0.2V | |
Standard Discharge | Continuous Current | 100A |
Max.Pulse Current | 150A(<3s) | |
Discharge Cut-off Voltage | 40V | |
Environmental | Charge Temperature | 0℃ to 55℃ (32F to 131F) @60±25% Relative Humidity |
Discharge Temperature | -20℃ to 60℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | -20℃ to 45℃ (-4F to 113F) @60±25% Relative Humidity | |
IP Class | IP65 | |
Mechanical | Plastic Case | ABS/Metal |
Approx.Dimensions | 520*460*195mm/Customized | |
Approx.Weight | 52kg |
