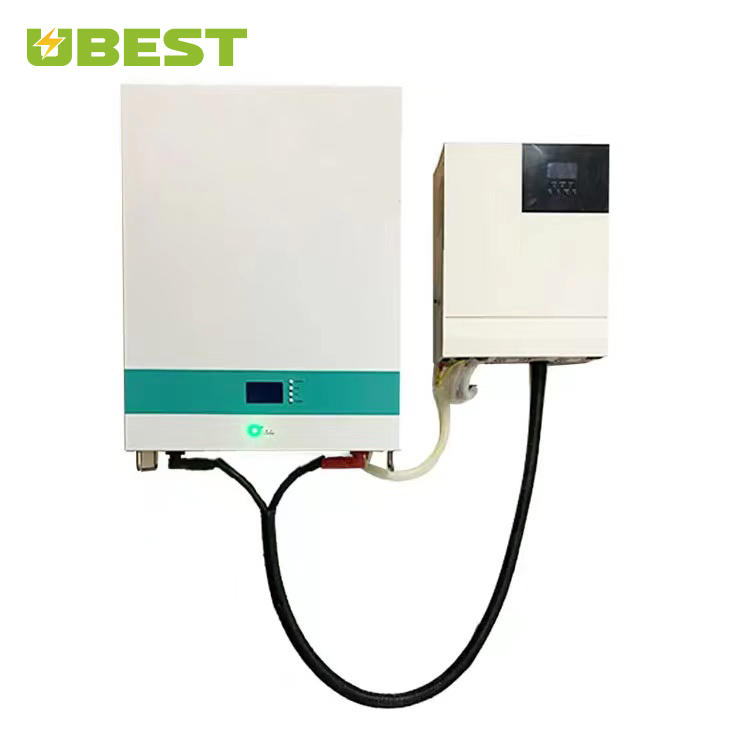

48V 100AH Wall-mounted Home Energy Storage System

Charge Current: 100A
Capacity: 100Ah, 4.8KWh
Battery Type: Lithium Ion
Weight: 52kg
The 48V 100AH Wall-mounted Home Energy Storage System(ESS) is a type of battery storage system designed for home use. It consists of lithium-ion batteries, a battery management system, and a wall-mounted enclosure. The system can store excess electricity generated by solar panels or other renewable energy sources during the day and supply power to the home during peak electricity usage times or during power outages. The 48V 100AH rating indicates that the system has a capacity of 4.8 kilowatt-hours (kWh) and can discharge at a rate of 100 amps for one hour.
SKU:
Availability:

PDF Export

  • 48V 100Ah

  • UBEST

  • UBEST-48-100-W

Product Introduction

The 48V 100Ah Wall-mounted Home Energy Storage System(ESS) is a type of battery storage system designed to store electrical energy generated from renewable sources such as solar panels or wind turbines, for use in residential or commercial settings.

The system consists of a wall-mounted unit that contains a set of batteries capable of storing up to 100 amp-hours (AH) of electrical energy at a voltage of 48 volts (V). The battery unit can be charged either from the electrical grid or from renewable sources and can then be used to power homes or businesses during periods of high demand or when there is no electricity supply available.

This type of energy storage system is becoming increasingly popular as more and more people look for ways to reduce their reliance on fossil fuels and move towards more sustainable sources of energy. It can help homeowners and businesses save money on their electricity bills and reduce their carbon footprint by allowing them to use clean, renewable energy when it's most needed. The wall-mounted design of this system makes it space-saving and convenient for installation in residential or commercial settings.


Essential details

Warranty:Other

Free installation service:NO

Place of Origin:Guangdong, China

Brand Name:OEM

Application:Outdoor

Solar Panel Type:Monocrystalline Silicon

Battery Type:NONE

Controller Type:NONE

Mounting Type:Roof Mounting

Load Power (W):5kW

Output Voltage (V):Custom Service

Output Frequency:Custom Service

Work Time (h):24

Certificate:CE, ROHS, BIS, MSDS, UN38.3, CE, ROHS, BIS, MSDS, UN38.3

Pre-sales project design:Y

Type:Wall-mounted Storage battery

Charging / Discharge current:100A

Size:600(L)*530(W)*187(H)

Discharge cutoff voltage:43.2v

Charging cutoff voltage:58.4V

Weight:85±5Kg

Cycle life(80%DOD):3000 cycles

Capacity:100ah

Nominal voltage:51.2V


Product Advantages

Plug and play

Easy installation

Easy to understand settings

100% discharge depth:Battery cycles more than 8000

Average service life of products more than 25years

Communication control with protocol:Communication rs485/can protocol,Support pc/web/app control, Customizable.

Integrated fuselage design:Light weight,small size, BMS, guaranteed Battery protection, safe and light

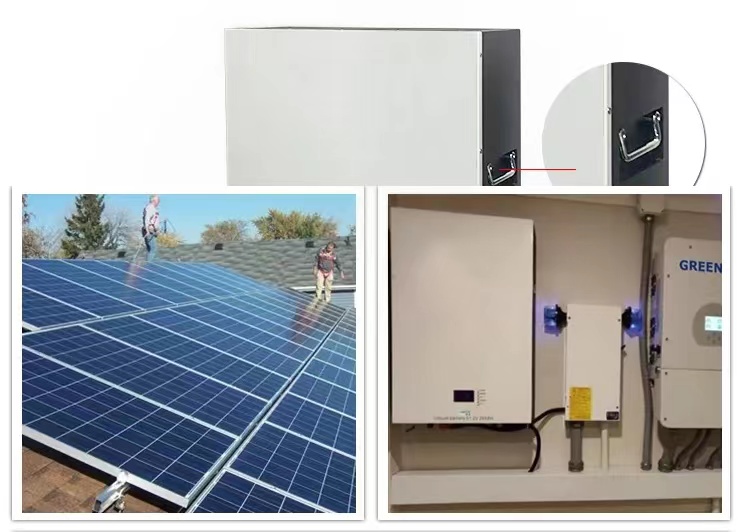

Product Details

Product Details

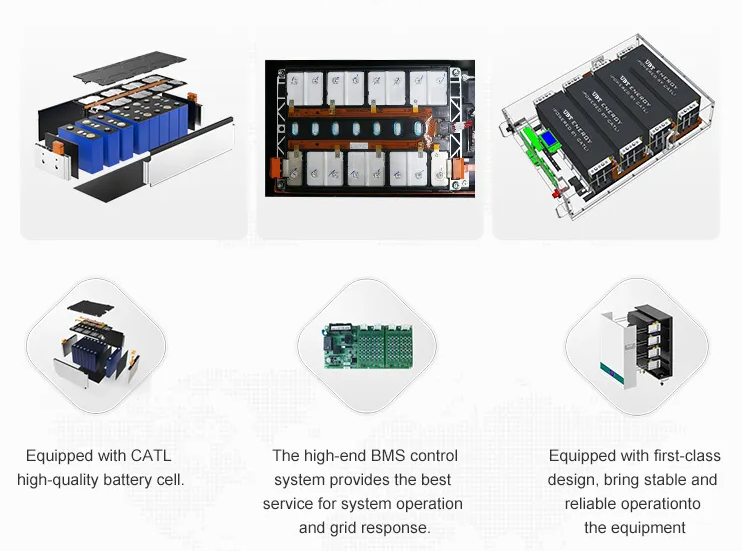

Manufacture Technology

Manufacture Technology

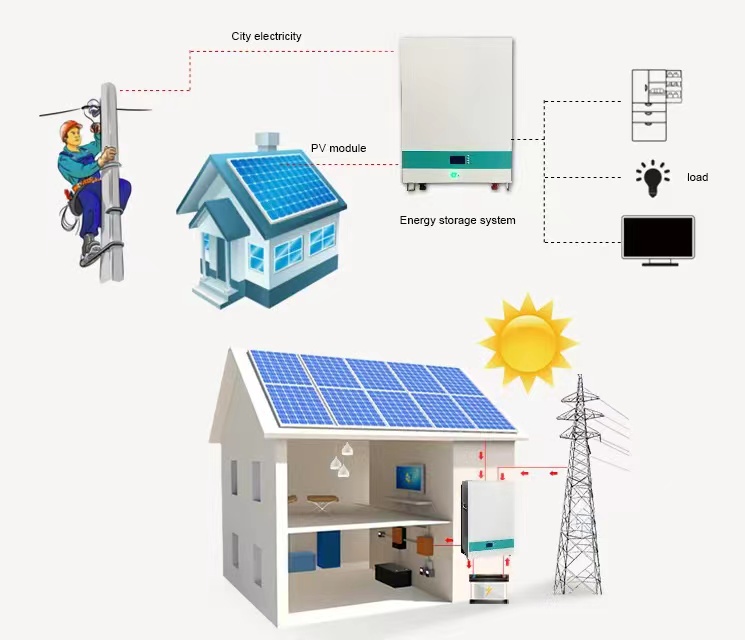

Product System Application

Product System Application

Specification

Mounting Type

Roof Mounting

Load Power (W)

5kW

Output Voltage (V)

Custom Service

Output Frequency

Custom Service

Work Time (h)

24

Certificate

CE, ROHS, BIS, MSDS, UN38.3

Type

Wall-mounted Storage battery

Charging / Discharge current

100A

Size

600(L)*530(W)*187(H)

Certificate

CE, ROHS, BIS, MSDS, UN38.3

Discharge cutoff voltage

43.2v

Charging cutoff voltage

58.4V

Weight

85±5Kg

Cycle life(80%DOD)

3000 cycles

Capacity

100ah

Nominal voltage

51.2V
